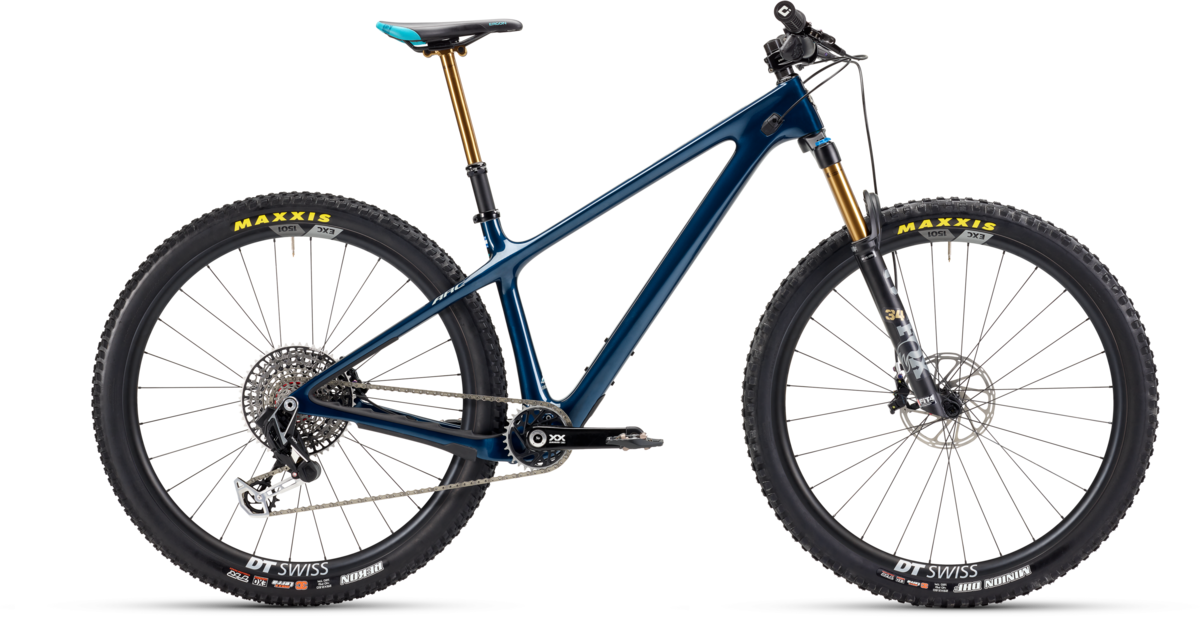

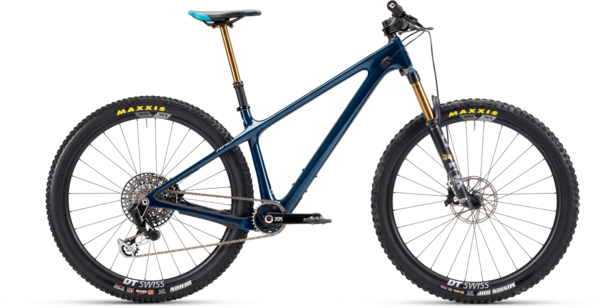

Yeti Cycles ARC T-Series T4 XX T-Type EXC
Details
The arc is back. Conjuring up all the nostalgia, hoots and hollars from yesteryear. It's your instant-feedback steed for any trail. Show it your singletrack, pump track and your bikepack route too. It's got history to live up to and new history to make. And it's already impatient.
| Frame Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheel Size |
740mm 29in |
740mm 29in |
740mm 29in |
740mm 29in |
| Reach |
420mm 16.5in |
445mm 17.5in |
465mm 18.3in |
490mm 19.3in |
| Effective Top Tube Length |
577.4mm 22.7in |
604.3mm 23.8in |
626mm 24.6in |
653.4mm 25.7in |
| Stack |
631.7mm 24.9in |
638.9mm 25.2in |
645.1mm 25.4in |
654.3mm 25.8in |
| Headtube Length |
95mm 3.7in |
102.9mm 4.1in |
109.6mm 4.3in |
119.6mm 4.7in |
| Seat Tube Length |
380mm 15in |
410mm 16.1in |
450mm 17.7in |
495mm 19.5in |
| Effective Seat Tube Angle | 76 degrees | 76 degrees | 76 degrees | 76 degrees |
| Headtube Angle | 67 degrees | 67 degrees | 67 degrees | 67 degrees |
| Estimated BB Height |
310mm 12.2in |
310mm 12.2in |
310mm 12.2in |
310mm 12.2in |
| Chainstay Length |
433mm 17in |
433mm 17in |
433mm 17in |
433mm 17in |
| Front Center |
710.5mm 28in |
738.5mm 29.1in |
761.2mm 30in |
790.1mm 31.1in |
| Wheelbase |
1143.5mm 45in |
1171.5mm 46.1in |
1194.2mm 47in |
1223.1mm 48.2in |
| Standover |
723mm 28.5in |
722mm 28.4in |
720mm 28.3in |
720mm 28.3in |
| Axle to Crown |
543.7mm 21.4in |
543.7mm 21.4in |
543.7mm 21.4in |
543.7mm 21.4in |
| Offset |
44mm 1.7in |
44mm 1.7in |
44mm 1.7in |
44mm 1.7in |
| Vertical Fork Travel |
119.7mm 4.7in |
119.7mm 4.7in |
119.7mm 4.7in |
119.7mm 4.7in |
| Small | 5'1" - 5'7" |
|---|---|
| Medium | 5'5" - 5'11" |
| Large | 5'10" - 6'3" |
| X-Large | 6'1" - 6'7" |
Specs
| Frame | TURQ series carbon fiber frame, Pressfit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, Universal derailleur hanger (UDH), and axle.FOX FACTORY 34 FIT4/130MM |
|---|---|
| Fork | FOX FACTORY 34 FIT4/130MM |
| Wheels | DT SWISS XM1700 30MM |
| Tires | MAXXIS MINION DHF 2.6 EXO / MAXXIS REKON 2.6 EXO |
| Bottom Bracket | SRAM DUB BB92 |
| Crankset | SRAM XX EAGLE TRANSMISSION 32T 170MM |
| Shifters | SRAM AXS POD CONTROLLER |
| Rear Derailleur | SRAM XX EAGLE AXS TRANSMISSION |
| Cassette/Freewheel | SRAM XX EAGLE TRANSMISSION 10-52 |
| Chain | SRAM XX EAGLE TRANSMISSION FLATTOP |
| Brakes | SRAM G2 ULTIMATE |
| Rotors | SRAM CENTERLINE 180/SRAM CENTERLINE 180 |
| Handlebars | YETI CARBON 35X760MM |
| Tape/Grips | ODI ELITE PRO |
| Stem | BURGTEC ENDURO MK3 CNC 35X50MM |
| Headset | CANE CREEK 110 INTEGRATED |
| Seatpost | FOX TRANSFER FACTORY 31.6MM / SM: 175MM, MD-XL: 200MM |
| Saddle | ERGON SM ENDURO SADDLE |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Cobalt / Small / 29-inch | 786044576243 | B25ARCTSMPCBFATE443W0 |
| Cobalt / Medium / 29-inch | 786044576328 | B25ARCTMDPCBFATE443W0 |
| Cobalt / Large / 29-inch | 786044576403 | B25ARCTLGPCBFATE443W0 |
| Cobalt / X-Large / 29-inch | 786044576489 | B25ARCTXLPCBFATE443W0 |
| Redrum / Small / 29-inch | 786044576564 | B25ARCTSMRRTFATE443W0 |
| Redrum / Medium / 29-inch | 786044576649 | B25ARCTMDRRTFATE443W0 |
| Redrum / Large / 29-inch | 786044576724 | B25ARCTLGRRTFATE443W0 |
| Redrum / X-Large / 29-inch | 07501001279370 | B25ARCTXLRRTFATE443W0 |
| Turquoise / Small / 29-inch | 786044575925 | B25ARCTSMPTUFATE443W0 |
| Turquoise / Medium / 29-inch | 786044576007 | B25ARCTMDPTUFATE443W0 |
| Turquoise / Large / 29-inch | 786044576083 | B25ARCTLGPTUFATE443W0 |
| Turquoise / X-Large / 29-inch | 786044576168 | B25ARCTXLPTUFATE443W0 |
