BMC Twostroke 01 THREE
$3,399.00
$3,999.00
Details

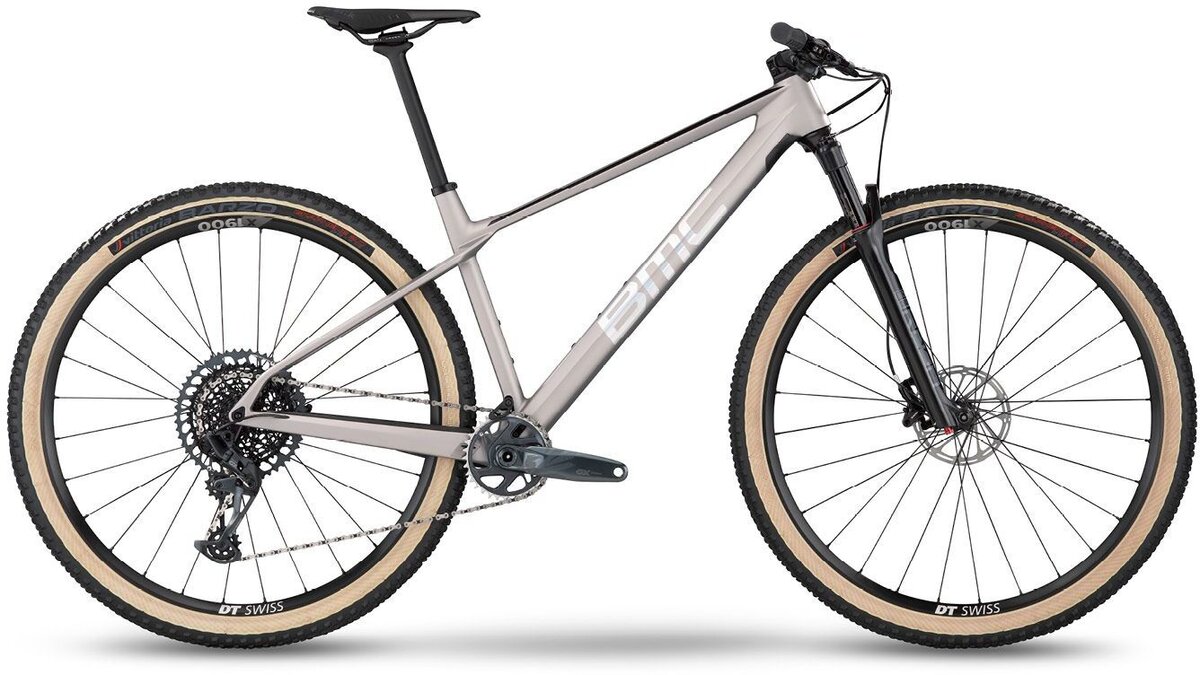

The Twostroke 01 is a progressive, compliant and confidence-inspiring fast hardtail. Its TCC-designed carbon frame has radical geometry for steep and loose terrain, wide tire clearance, integrated fork stopper and frame protection, plus internal cabling and provision for a dropper post. With a RockShox Reba RL fork, carbon bar, 12-speed SRAM GX Eagle groupset and DT Swiss X 1900 wheelset on Vittoria Barzo tires, there's excitement ahead.

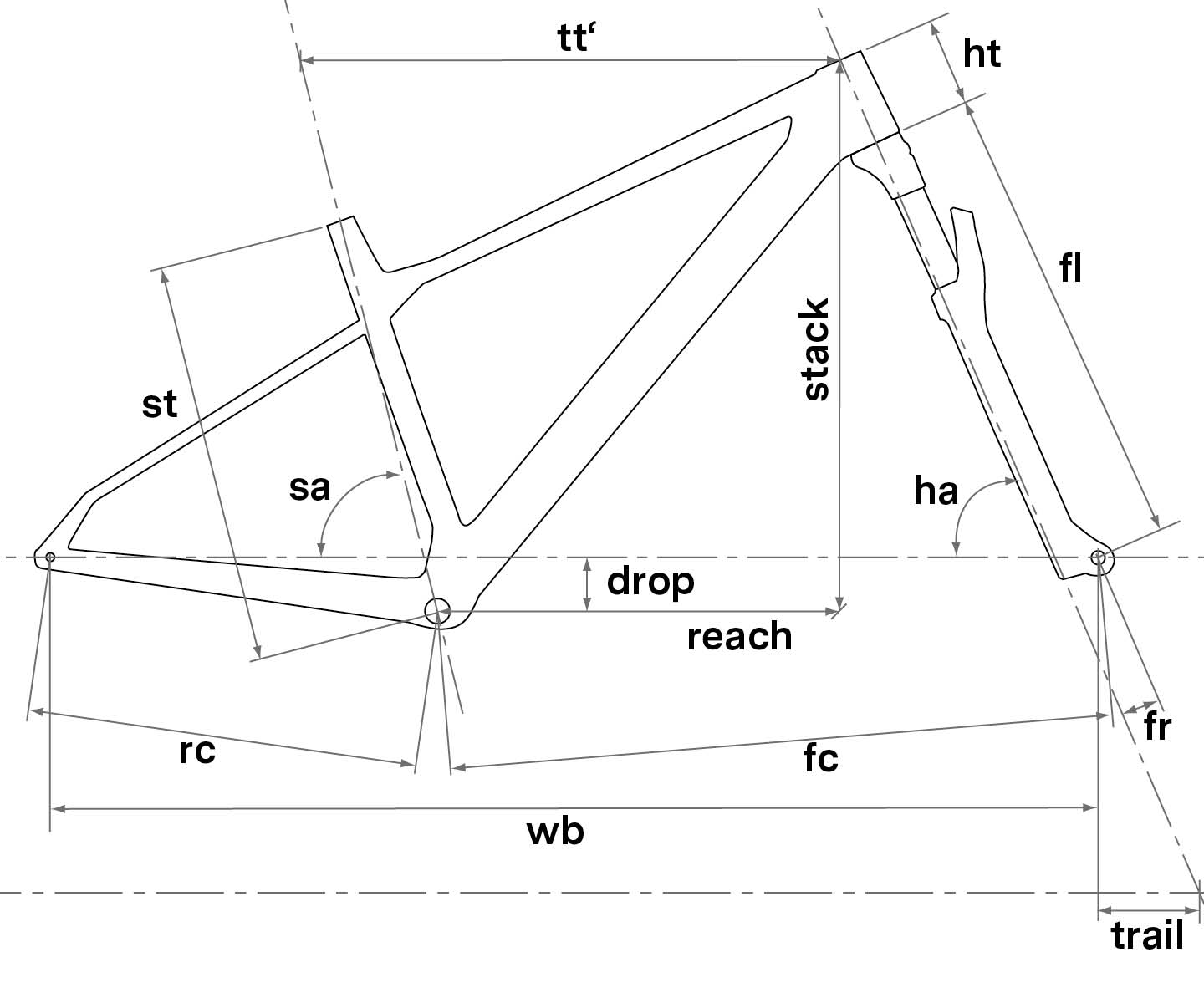

| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Rider Height CM | 162-172 | 170-180 | 178-188 | >188 |
| Stack MM | 588 | 598 | 608 | 623 |
| Reach MM (reach) | 422.5 | 445 | 465 | 485 |
| Seat Tube MM (st) | 410 | 440 | 480 | 510 |
| Top Tube MM (tt) | 597 | 618 | 638 | 658 |
| Head Tube MM (ht) | 87 | 93.5 | 106 | 122.5 |
| Seat Tube Angle (sa) | 75 | 75 | 75 | 75 |
| Head Angle (ha) | 67 | 67 | 67 | 67 |
| Rear Center MM (rc) | 425 | 425 | 425 | 425 |
| Front Center MM (fc) | 696 | 715 | 741 | 767 |
| Wheelbase MM (wb) | 1112.5 | 1135 | 1161 | 1185 |
| BB Drop MM (drop) | 64 | 64 | 64 | 64 |
| Fork Length MM (fl) | 505 | 505 | 505 | 505 |
| Fork Rake MM (fr) | 44 | 44 | 44 | 44 |
| Trail MM (trail) | 109 | 109 | 109 | 109 |
| Crank Length MM | 170 | 175 | 175 | 175 |
| Stem Length MM | 50 | 60 | 60 | 70 |
| Stem Angle | -5 | -5 | -5 | -5 |
| Bar Width MM | 760 | 760 | 760 | 760 |
| Bar Rise MM | 4 | 4 | 4 | 4 |
| Backsweep | 8 | 8 | 8 | 8 |
| Standover Height mm | 725 | 730 | 735 | 750 |
Specs
| Frame | Twostroke 01 Premium Carbon with Tuned Compliance, Concept XC, Fully Guided Internal Cable Routing, PF92 Bottom Bracket, Post Mount Disc, 12x148mm Boost Thru-Axle |
|---|---|
| Fork | Rockshox Reba RL - OneLoc Sprint Remote |
| Rims | DT Swiss X 1900 Wheelset - 25mm Inner Width |
| Hubs | DT Swiss 370 |
| Tires | Vittoria Barzo 2.25" |
| Chainrings | SRAM Gx Eagle 34T |
| Shifters | SRAM GX Eagle |
| Rear Derailleur | SRAM GX Eagle |
| Cassette/Freewheel | SRAM GX Eagle XG-1275 10-52T |
| Chain | SRAM GX Eagle |
| Brakes | SRAM Level TL / SRAM Centerline Rotors (160/160 S-M - 180/160 L-XL) |
| Handlebars | BMC MFB01 Carbon 760mm |
| Stem | BMC MSM01 |
| Seatpost | Twostroke 01 Premium Carbon D-Shaped Seatpost, 0mm Offset |
| Saddle | Fizik Antares R7 |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Arctic Silver Prisma / Small | 07630027886467 | 30002600 |
| Arctic Silver Prisma / Medium | 07630027886450 | 30002601 |
| Arctic Silver Prisma / Large | 07630027886443 | 30002602 |
| Arctic Silver Prisma / X-Large | 07630027886535 | 30002603 |
