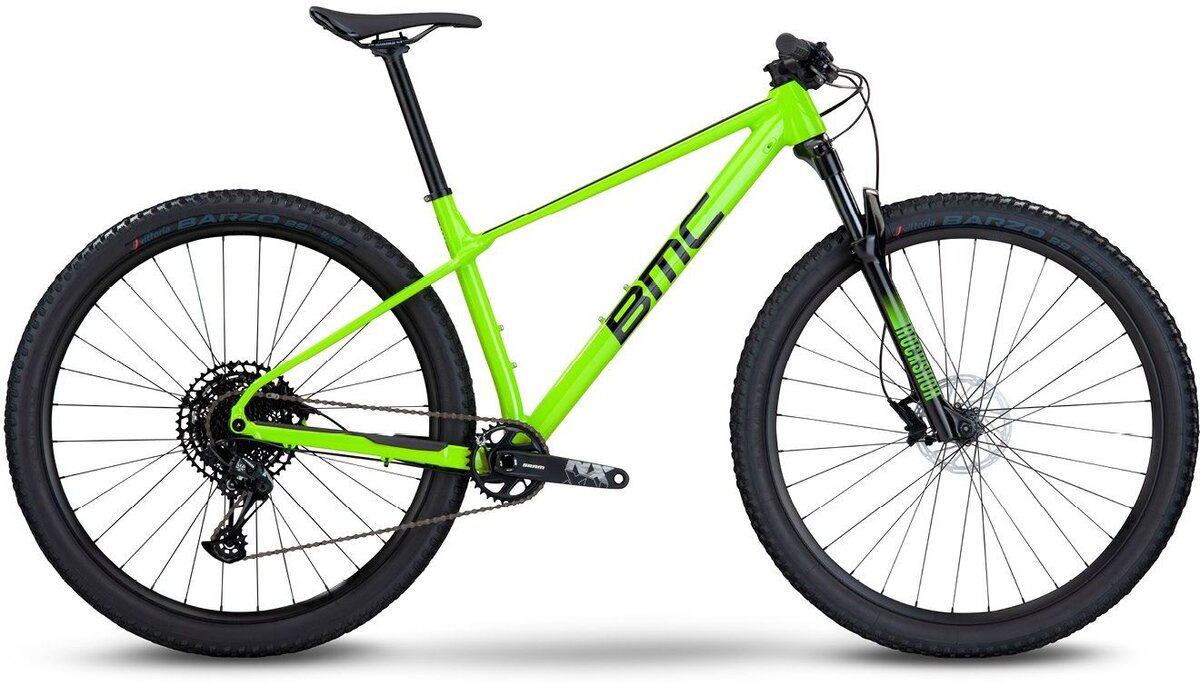

BMC Twostroke AL ONE

BMC Twostroke AL ONE
$1,954.00
$2,299.00
Color: Poison Green/Black
Size: Select size
Please select options Unavailable
This manufacturer currently prefers that we only sell this item in our retail store. Please visit us soon.

Details

Twostroke AL emulates the Twostroke 01's performance in a refined Smoothweld Premium Aluminum frame. Inspired by the Fourstroke and a fighter jet, it offers the perfect blend of performance, functionality and aesthetics, with radical geometry, wide tire clearance and integrated protection to combat technical terrain. The drivetrain mixes SRAM NX and SX Eagle, the brakes are Shimano Deore, and a RockShox Recon RL fork and SHL280S wheels deal with ground control.

Geometry

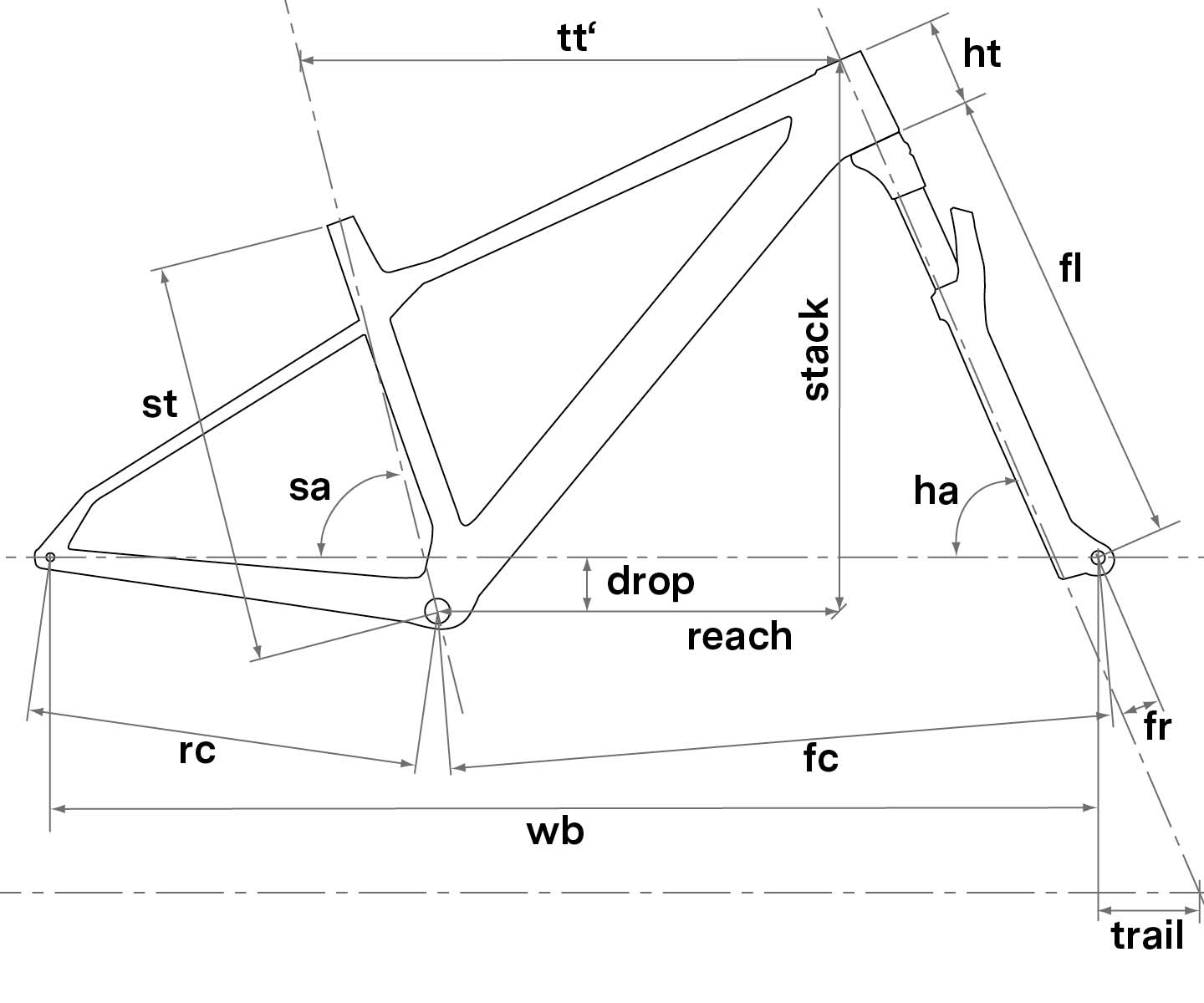

Geometry Chart:
SizeSmallMediumLargeX-Large
Rider Height CM <170 170-182 180-192 >190
Stack MM 588 598 608 623
Reach MM (reach) 422.5 445 465 485
Seat Tube MM (st) 410 440 480 510
Top Tube MM (tt) 597 618 638 658
Head Tube MM (ht) 87 93.5 106 122.5
Seat Tube Angle (sa) 75 75 75 75
Head Angle (ha) 67 67 67 67
Rear Center MM (rc) 425 425 425 425
Front Center MM (fc) 696 715 741 767
Wheelbase MM (wb) 1112.5 1135 1161 1185
BB Drop MM (drop) 64 64 64 64
Fork Length MM (fl) 505 505 505 505
Fork Rake MM (fr) 44 44 44 44
Trail MM (trail) 109 109 109 109
Crank Length MM 170 175 175 175
Stem Length MM 60 60 60 70
Bar Width MM 750 750 750 750
Bar Rise MM 4 4 4 4
Backsweep 9 9 9 9
Standover Height mm 725 730 735 750
Seatpost Length MM 350 400 400 400

Specs

Frame Twostroke AL Premium Aluminium Hydroformed, Smoothwelded, Internal Cable Routing, BSA Threaded Bottom Bracket, Post Mount Disc
Fork Rockshox Recon RL
Rims SHL28OS - 25mm Inner Width
Hubs SHIMANO MT400
Tires Vittoria Barzo 2.25"
Chainrings SRAM NX Eagle 32T
Shifters SRAM NX Eagle
Rear Derailleur SRAM NX Eagle
Cassette/Freewheel SRAM NX Eagle 11-50T
Chain SRAM SX Eagle
Brakes SRAM Level T / SRAM Centerline Rotors (160/160 S-M - 180/160 L-XL)
Handlebars BMC MFB03 Alloy 750mm
Stem Forged 6061 Alloy
Seatpost BMC MSP03 - 31,6mm - 0mm Offset
Saddle Selle Royal Seta
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Poison Green/Black / Small 07630027886702 30002616
Poison Green/Black / Medium 07630027886696 30002617
Poison Green/Black / Large 07630027886689 30002618
Poison Green/Black / X-Large 07630027886672 30002619
