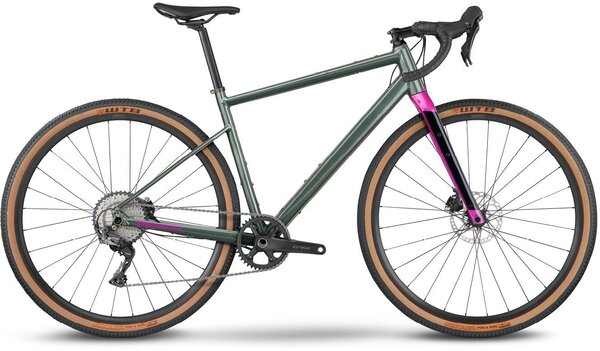

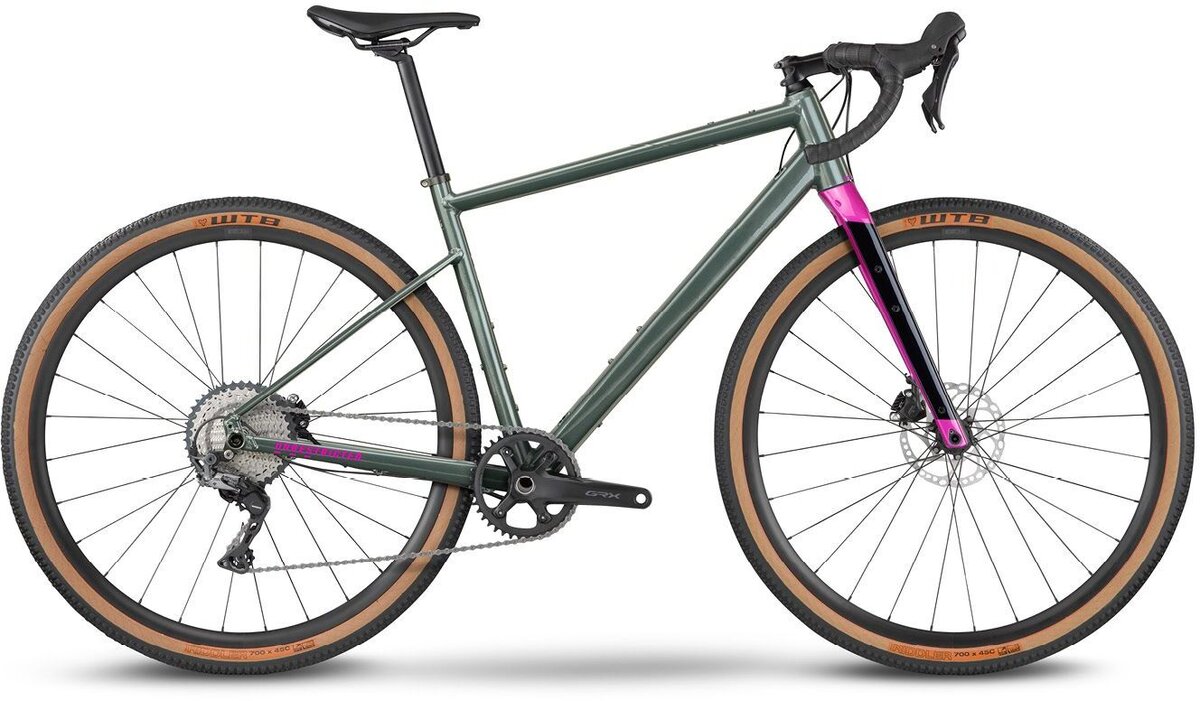

BMC URS AL THREE
$1,954.00
$2,299.00
Details
URS AL has chameleon-like capabilities to adapt and thrive in diverse surroundings. Maintaining the URS family's handling characteristics, whilst offering even greater practicality through additional cargo mounts and dropper post compatibility, the URS AL gravel bike can truly be your bike for all reasons. Specced with Shimano's 2x10 GRX 400 groupset for all gradients, 45 mm WTB tires, and rolling on PRD23 wheels, the URS Three wants to make every gravel experience the best one yet.

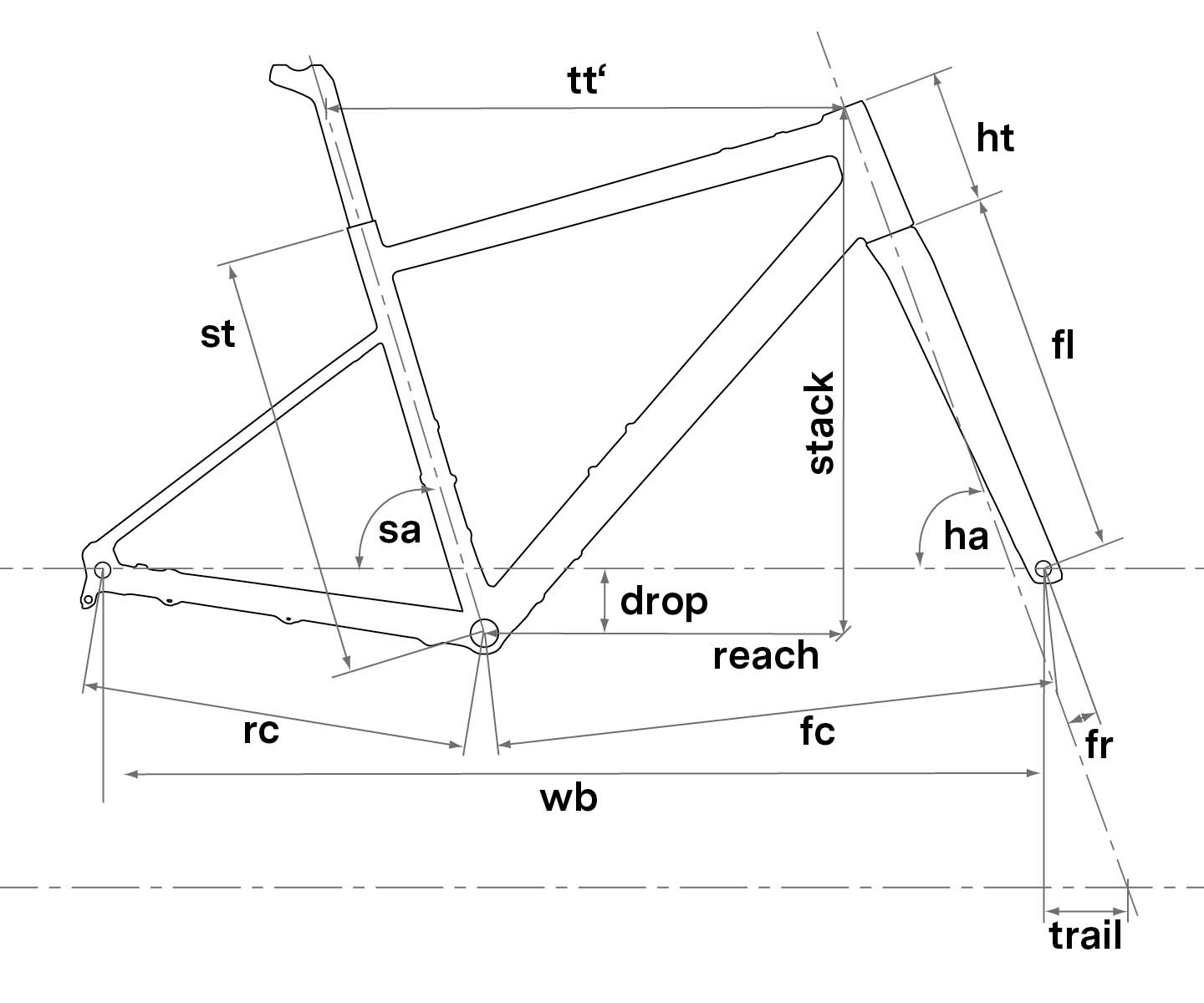

| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Rider Height CM | < 165 | 162-172 | 170-182 | 180-192 | >190 |
| Stack MM | 525 | 550 | 580 | 610 | 640 |
| Reach MM (reach) | 390 | 400 | 410 | 420 | 430 |
| Seat Tube MM (st) | 430 | 445 | 475 | 505 | 540 |
| Top Tube MM (tt) | 540 | 558 | 576 | 595 | 614 |
| Head Tube MM (ht) | 92 | 118 | 150 | 182 | 214 |
| Seat Tube Angle (sa) | 74 | 74 | 74 | 74 | 74 |
| Head Angle (ha) | 70 | 70 | 70 | 70 | 70 |
| Rear Center MM (rc) | 430 | 430 | 430 | 430 | 430 |
| Front Center MM (fc) | 608 | 626 | 647 | 668 | 689 |
| Wheelbase MM (wb) | 1028 | 1047 | 1068 | 1089 | 1110 |
| BB Drop MM (drop) | 69 | 69 | 69 | 69 | 69 |
| Fork Length MM (fl) | 410 | 410 | 410 | 410 | 410 |
| Fork Rake MM (fr) | 45 | 45 | 45 | 45 | 45 |
| Trail MM (trail) | 78 | 78 | 78 | 78 | 78 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 |
| Stem Length MM | 70 | 70 | 70 | 80 | 80 |
| Stem Angle | ±6 | ±6 | ±6 | ±6 | ±6 |
| Bar Width MM | 420 | 420 | 420 | 440 | 440 |
| Bar Drop MM | 130 | 130 | 130 | 130 | 130 |
| Bar Reach MM | 70 | 70 | 70 | 70 | 70 |
| Post Offset MM | 15 | 15 | 15 | 15 | 15 |
Specs
| Frame | URS Premium Aluminum, Gravel+ Geometry, Internal Cable Routing, Fender and Rack Mounts, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle |
|---|---|
| Fork | URS Carbon, Internal Brake & Hub Dynamo Cable Routing, Fender Mounts, Cargo Mounts, Flat Mount Disc, 12x100mm Thru-Axle, Side Mounts |
| Rims | PRD23 - 23mm |
| Hubs | CL-712 (F)/RXC-1425 (R) - Thru Axle |
| Tires | WTB Riddler - 45mm |
| Chainrings | SHIMANO GRX 600 46-30T |
| Shifters | SHIMANO GRX 400 |
| Rear Derailleur | SHIMANO GRX 400 |
| Cassette/Freewheel | SHIMANO Deore 11-36T |
| Chain | SHIMANO 10 spd |
| Brakes | SHIMANO GRX 400 - SM-RT64 Rotors (160/160) |
| Handlebars | BMC RAB |
| Stem | BMC MSM |
| Seatpost | BMC RSP03 |
| Saddle | Selle Royal |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Metallic Grey Green/Fuchsia / X-Small | 07630027885866 | 30002538 |
| Metallic Grey Green/Fuchsia / Small | 07630027885859 | 30002539 |
| Metallic Grey Green/Fuchsia / Medium | 07630027885842 | 30002540 |
| Metallic Grey Green/Fuchsia / Large | 07630027885934 | 30002541 |
| Metallic Grey Green/Fuchsia / X-Large | 07630027886023 | 30002542 |
