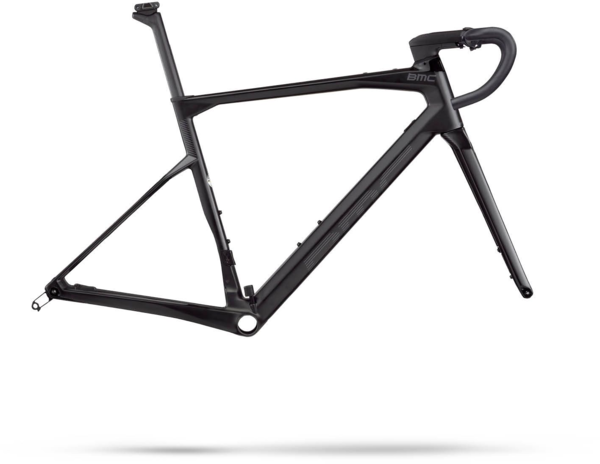

BMC Roadmachine 01 MOD P2P

BMC Roadmachine 01 MOD P2P
$4,334.00
$5,099.00
Color: Carbon/Metallic Grey
Size: Select size
Please select options Unavailable
This manufacturer currently prefers that we only sell this item in our retail store. Please visit us soon.

Details

The extraordinarily capable Roadmachine 01 combines relentless speed with indulgent comfort, so you can go further, faster. Its Premium Carbon frame and fork were designed using TCC Endurance technology, and feature ICS technology, Stealth Cable Routing and a Premium Carbon D-Shape seatpost. The module also comes with P2P cockpit options, providing the ultimate platform for your totally customizable and optimally fitted endurance bike.

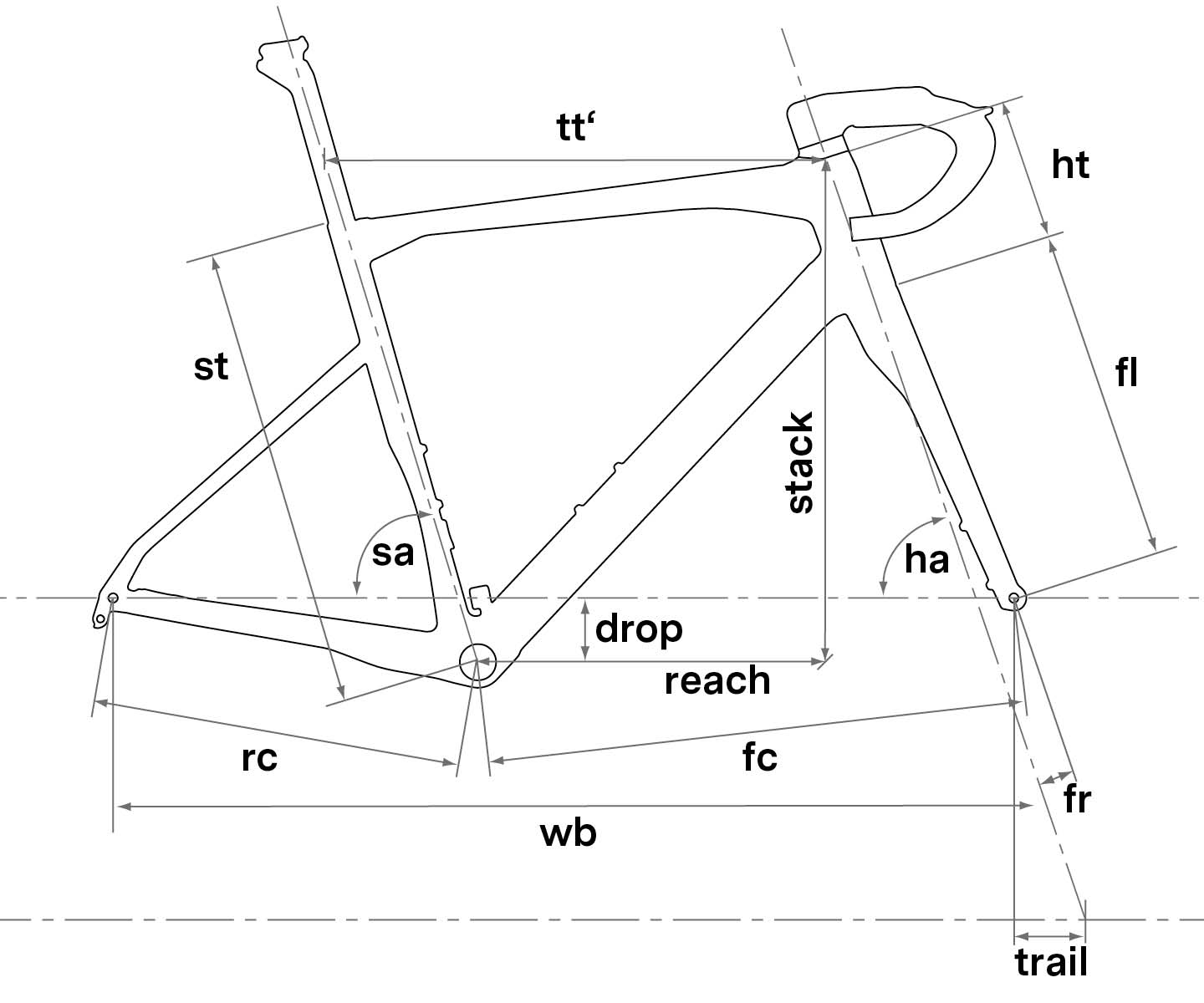

Geometry

Geometry Chart:
Size475154565861
Rider Height CM <166 166-174 172-180 178-186 184-192 >190
Stack MM 516 541 562 586 610 644
Reach MM (reach) 374 382 386 390 394 398
Seat Tube MM (st) 420 457 500 522 539 573
Top Tube MM (tt) 522 532 546 556 568 583
Head Tube MM (ht) 112 139 156 181 206 242
Seat Tube Angle (sa) 74.2 74.2 74.2 74.2 74.2 74.2
Head Angle (ha) 71.2 71.2 72 72 72 72
Rear Center MM (rc) 410 410 410 410 410 410
Front Center MM (fc) 583 599 597 609 621 635
Wheelbase MM (wb) 982 999 997 1008 1020 1035
BB Drop MM (drop) 71 71 71 71 71 71
Fork Length MM (fl) 375 375 375 375 375 375
Fork Rake MM (fr) 50 50 45 45 45 45
Trail MM (trail) 63 63 63 63 63 63
Stem Length MM 90 100 100 110 110 120
Stem Angle -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
Bar Width MM 400 420 420 420 420 420
Bar Drop MM 127 127 127 127 127 127
Bar Reach MM 67 67 67 67 67 67
Post Offset MM 15 15 15 15 15 15
Standover Height mm 719 750 782 805 825 859

Specs

Frame Roadmachine 01 Premium Carbon with Tuned Compliance, Concept Endurance, ICS Technology Stealth Cable Routing, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle
Fork Teammachine SLR Carbon, TCC Race Compliance Level, Internal Cable Routing, Flat Mount Disc, Stealth Dropout Design, 12x100mm Thru-Axle

* Subject to change without notice.

Part Numbers

Option UPC MPN
Carbon/Metallic Grey / 47cm 07630027884708 30002413
Carbon/Metallic Grey / 51cm 07630027884692 30002414
Carbon/Metallic Grey / 54cm 07630027884685 30002415
Carbon/Metallic Grey / 56cm 07630027884678 30002416
Carbon/Metallic Grey / 58cm 07630027884661 30002417
Carbon/Metallic Grey / 61cm 07630027884654 30002418
