BMC Trackmachine 01 FRS
$3,824.00
$4,499.00
Details

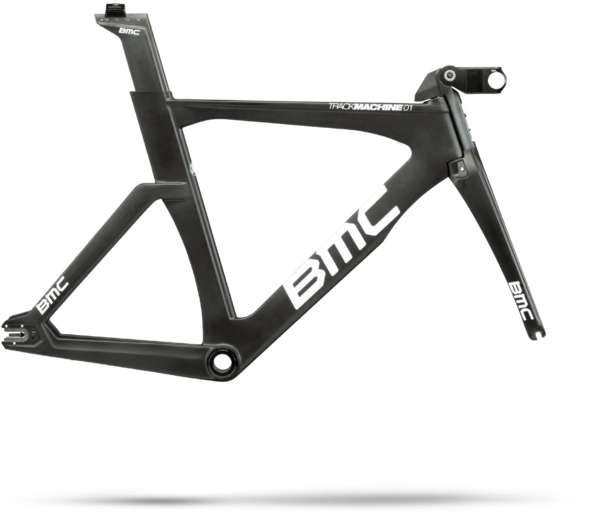

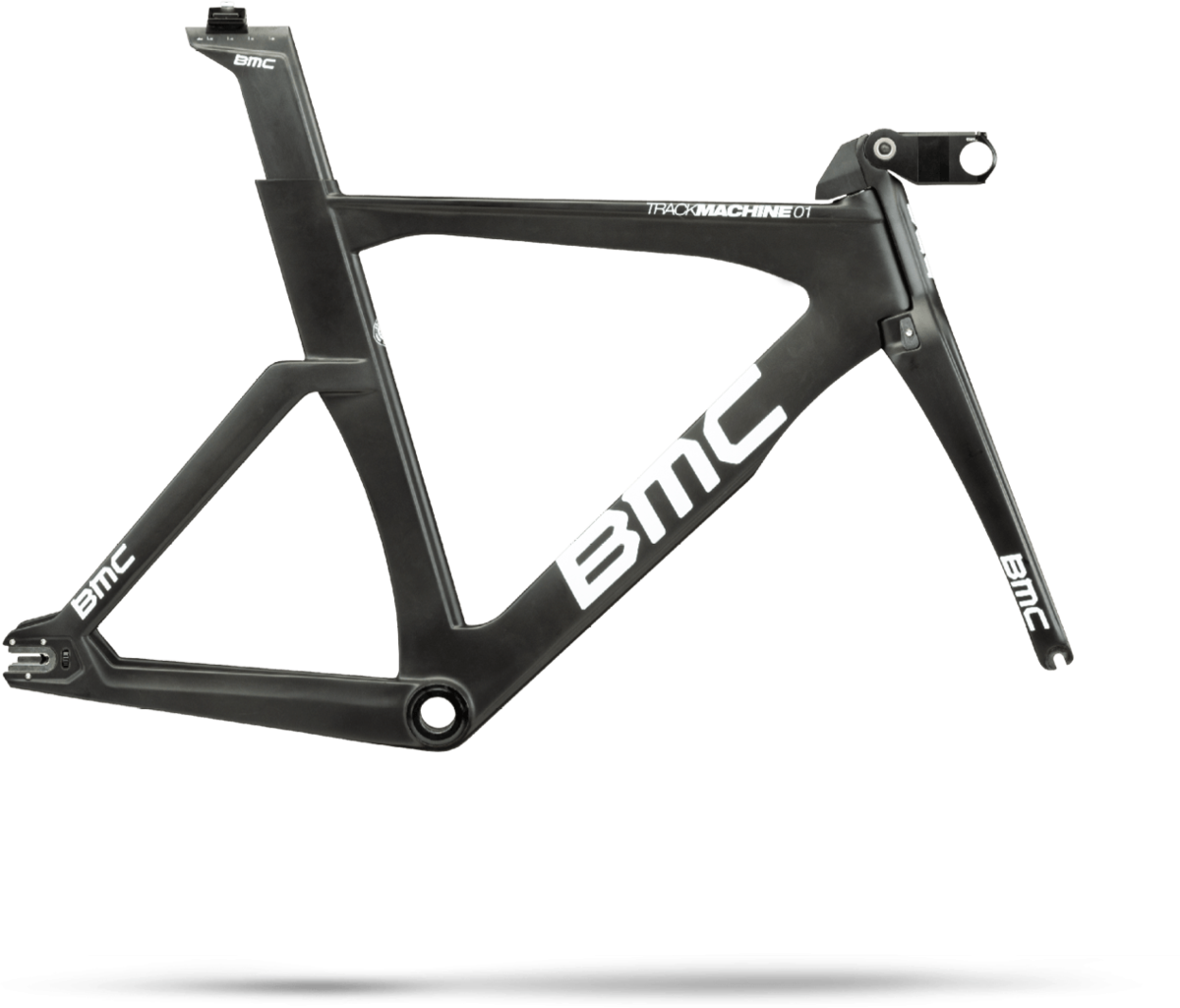

The Trackmachine 01 FRS is the highly refined, stunningly engineered core of your ultimate track bike. With a rich heritage on the boards, its efficiency and adjustability continue to impress, and it's a bike that can quickly and easily be adapted for numerous track disciplines. Built from Premium Carbon and invested with our Vmax Aero Design technology, it features a Hinge Design fork, sliding rear dropouts, a threaded bottom bracket shell, plus an adjustable Aero Seatpost and integrated stem.

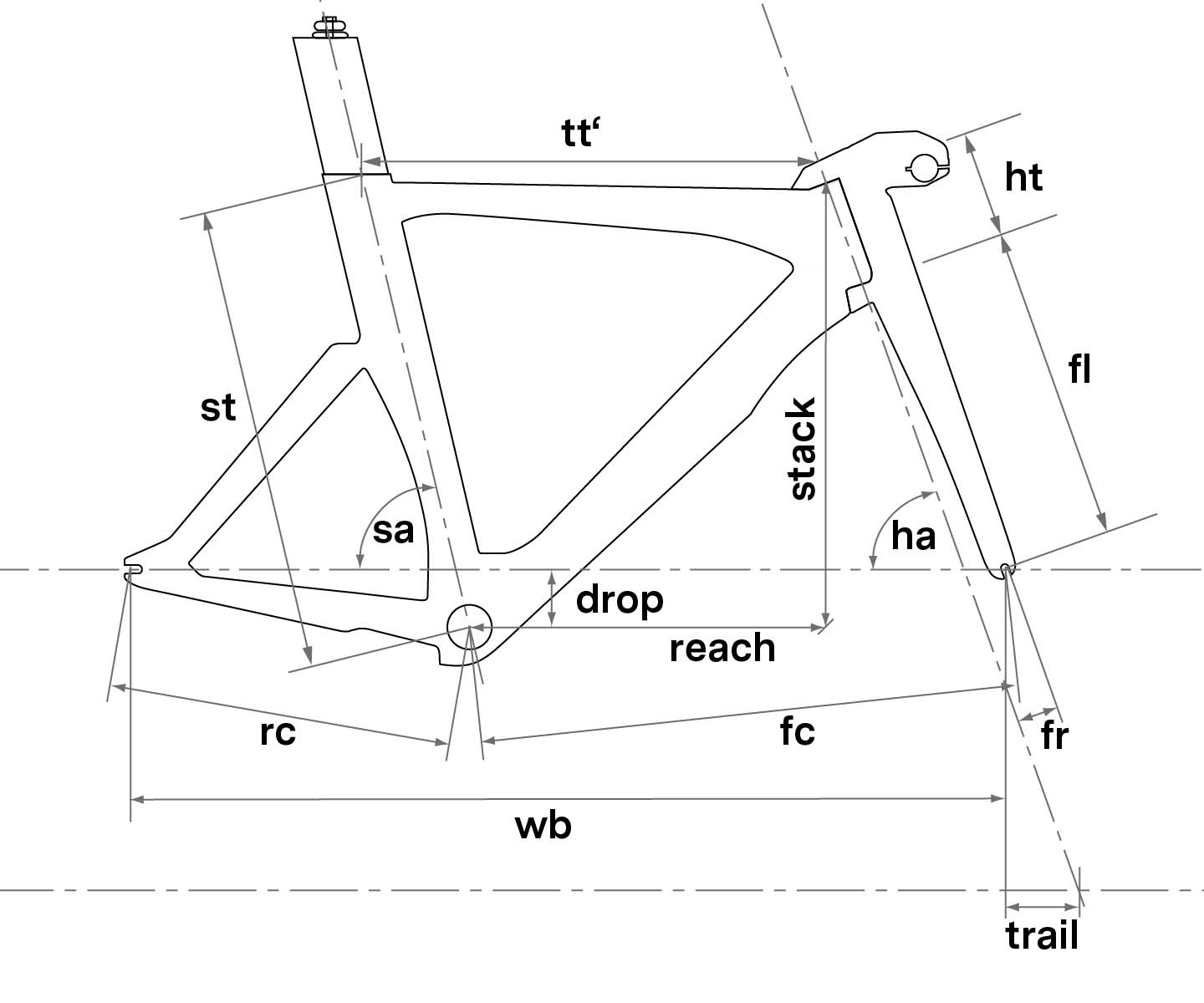

| Size | Small | Medium | Large |
|---|---|---|---|
| Rider Height CM | <173 | 170-185 | >183 |
| Stack MM | 471 | 506 | 544 |
| Reach MM (reach) | 390 | 408 | 430 |
| Seat Tube MM (st) | 505 | 542 | 582 |
| Top Tube MM (tt) | 525 | 553 | 585 |
| Head Tube MM (ht) | 94 | 134 | 163 |
| Seat Tube Angle (sa) | 74 | 74 | 74 |
| Head Angle (ha) | 72 | 72 | 72 |
| Rear Center MM (rc) | 390-420 | 390-420 | 390-420 |
| Front Center MM (fc) | 586 | 604 | 626 |
| Wheelbase MM (wb) | 963 | 981 | 1003 |
| BB Drop MM (drop) | 50 | 58 | 58 |
| Fork Length MM (fl) | 363 | 363 | 363 |
| Fork Rake MM (fr) | 48 | 48 | 48 |
| Trail MM (trail) | 59 | 59 | 59 |
| Stem Length MM | p2p Adjustable | p2p Adjustable | p2p Adjustable |
| Stem Angle | p2p Adjustable | p2p Adjustable | p2p Adjustable |
| Post Offset MM | 30/10 -10/-30 | 30/10 -10/-30 | 30/10 -10/-30 |
| Standover Height mm | 751 | 779 | 817 |
| Seatpost Length MM | 300 | 300 | 300 |
Specs
| Frame | Trackmachine 01 Premium Carbon with Vmax Aero Design P2P, Positioning SyStem, BSA Threaded Bottom Bracket, Sliding Dropouts |
|---|---|
| Fork | Trackmachine 01 Premium Carbon with Vmax Aero Design, Hinge-Design |
| Stem | Vmax Aero Integrated Design / P2P Technology |
| Seatpost | Trackmachine 01 Premium Carbon Aero Seatpost with P2P Positioning SyStem |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Carbon/White / Small | 07630027886405 | 30002586 |
| Carbon/White / Medium | 07630027886399 | 30002587 |
| Carbon/White / Large | 07630027886382 | 30002588 |
